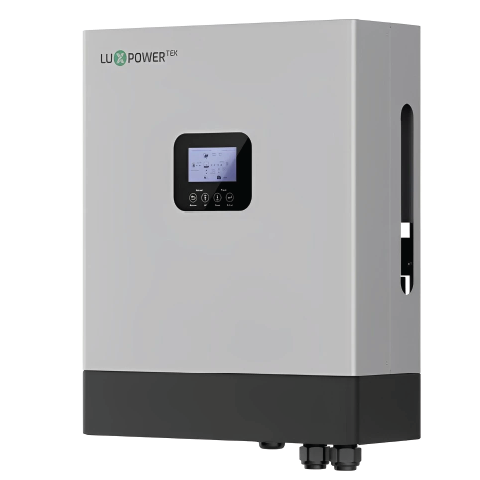

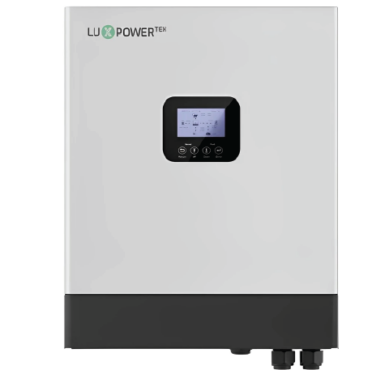

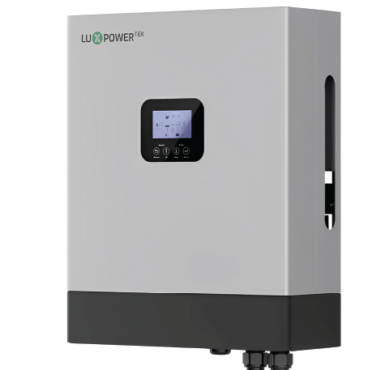

LUXPOWER GEN 6K
The GEN-LB-EU 3-6K single-phase hybrid inverter from LuxpowerTek offers an economical and powerful solution for solar energy users. It is ideal for families looking for an affordable and reliable option to protect against instability in the electrical grid.
Key Features
- Maximum Charge and Discharge Current : 125/140A.
- MPPT Inputs : 2, with a maximum photovoltaic input of 9 kW and a maximum input current of 18A per MPPT.
- Parallel Compatibility : Supports up to 10 units in parallel, both in grid-connected systems and in off-grid systems.
- Charge Optimization : Function for optimization based on usage time and climatic conditions to reduce electricity bills.
- Dedicated Generator Port : Includes a dedicated port that supports multiple functions, such as generator connection, AC coupling, or smart load management to enhance system stability.
Advanced Protection Features
- Surge Protection: Incorporates internal surge protection to safeguard the inverter and connected equipment.
- DC Isolation Detection: Monitors isolation resistance on the DC side to ensure system safety.
- Ground Fault Monitoring (GFCI): Monitors and protects against ground leakage currents, ensuring the safety of the system and users.
- AC Short Circuit Protection: Provides protection against short circuits on the AC side to prevent damage to the system.
- Anti-Islanding Protection: Prevents unintentional operation in island mode, ensuring safety for both the system and the electrical grid.
Smart Benefits
- Real-Time Monitoring : Offers 24/7 supervision via the LuxpowerTek app and web platform, allowing for remote control and management of the system.
- Seamless Switching : Allows for uninterrupted switching between grid-connected and off-grid modes in less than 20 ms, ensuring continuous power supply.
- Simplified Installation : «Plug & Play» design for AC and PV ports, facilitating quick and easy installation.
- Resistance to Environmental Conditions : IP65 rating, suitable for installation indoors and outdoors.
- Automatic Generator Control : Ability to automatically control an external generator, providing additional backup power when needed.
Physical Specifications
- Dimensions: 467 mm (height) x 455 mm (width) x 181 mm (depth).
- Weight: Approximately 24 kg.
- Operating Temperature Range: -25°C to +60°C.
- Display: LCD for clear visualization of system parameters.
Advantages of Using Our Hybrid Inverters in Your Photovoltaic Installations
Performance, Efficiency, and Safety Guaranteed
Maximum Energy Efficiency
Our hybrid inverters manage and convert the maximum amount of solar energy into usable electricity, minimizing energy losses.
Long Lifespan
Designed with high-quality components to ensure years of trouble-free operation.
Advanced Technology
Optimizes the performance of panels under varying light conditions.
Advanced Overload Protection
Our hybrid inverters feature advanced protection systems to safeguard both the equipment and the rest of the installation.
Compatibility with Battery Systems
Perfectly integrable with energy storage systems, increasing the autonomy of photovoltaic projects.
Minimal Maintenance
Reduction in the need for inspections and technical maintenance.
